Cosmo – Skymed 2nd Generation – Phase C3

MacroTiles Mechanical Analysis
Generation of detailed FE models and model checks (free-free, gravity, thermoelastic).
Structural and thermo-elastic sizings based on bolt verification (interface forces) and stress evaluation resulting from quasi-static, thermoelastic and random loads.

Panels Mechanical Analysis
Generation of detailed FE models of lateral and central panels and model checks (free-free, gravity, thermoelastic)
Structural optimization of the primary structure (frame) according to static and dynamic requirements.
Mechanical assessment under quasi-static and thermoelastic sizing loads:
• Antenna Bolt verification (interface forces);
• Stress analysis of the primary and secondary structure (frame, blades/Standoffs, Heat pipes);
• Stress analysis of composite parts (laminate and honeycomb);
Sine analysis in the frequency domain (accelerations, forces, stress).
Notching masks

ISS – NODE 2 – COPS

This project is part of the AirWorks engineers technical legacy.

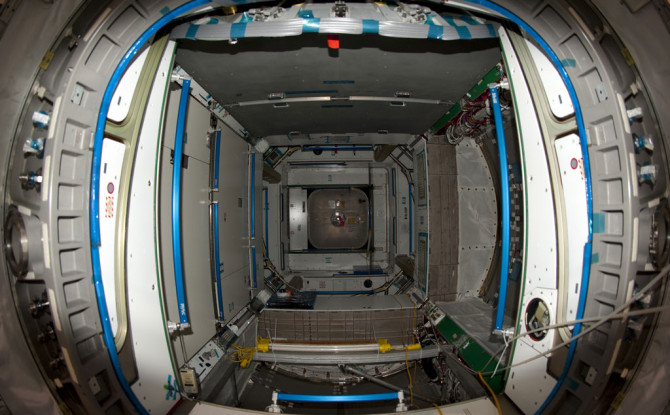

Our Engineers were involved in the ISS COPS (Module Close Out Panels) design.

The following activities were performed:

  • Structural Design
  • Static & Thermo-Structural analysis
  • Manufacturing optimization
  • Concessions
  • Reports

ISS – NODE 2 – MDPS

This project is part of the AirWorks engineers technical legacy.

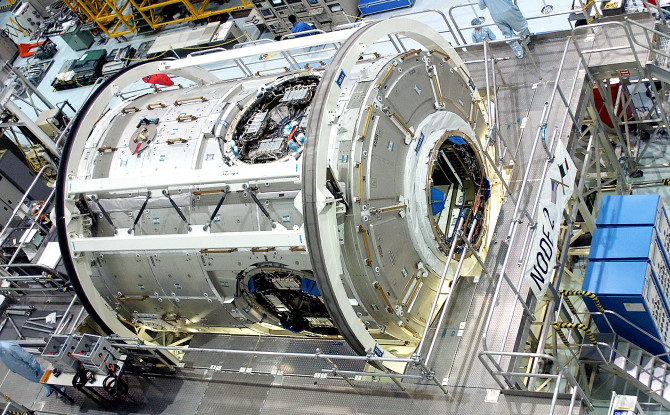

The ISS – MDPS (Meteorite Debris Protection System) consisted of a series of cylindrical/conical shaped, kevlar reinforced panels to be installed outside the ISS Node 2.

Following activitis were performed:

  • Structural Design
  • Static & Thermo-Structural analysis
  • Manufacturing optimization
  • Reports

COMPACT-SAR

This project is part of the AirWorks engineers technical legacy.

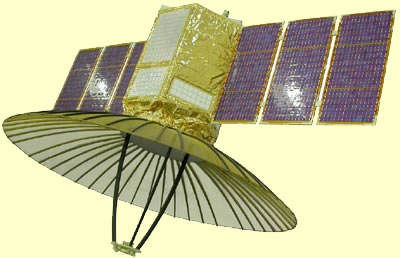

AirWorks engineers supported the design of both the Frame-Antenna assy and Radiating Boards/EFE/Heat Pipes supporting frame.

Static, thermo-structural and dynamic (sine / random) analyses were performed.



Cosmo – Skymed 2nd Generation

Mechanical Design
Design and manufacturing optimization of the Frame (primary structure)
Design and manufacturing optimization of the MacroTiles (secondary structure)
Design of the brackets of the Fixed Hold and Release Mechanisms (FHRM)
Design of the Radiating Board assy including the FRP chassis
Harmonization of the 3D structural models with the Harness/Piping requests
2D drawings and Interface Control Drawings (ICD)

Mechanical Analysis
Generation of FE models
Structural and thermo-elastic sizings
Sine analysis in the frequency domain (accelerations, forces, stress)
Notching masks
Random analysis in the frequency domain
Dynamic analysis vs. structural tests correlation

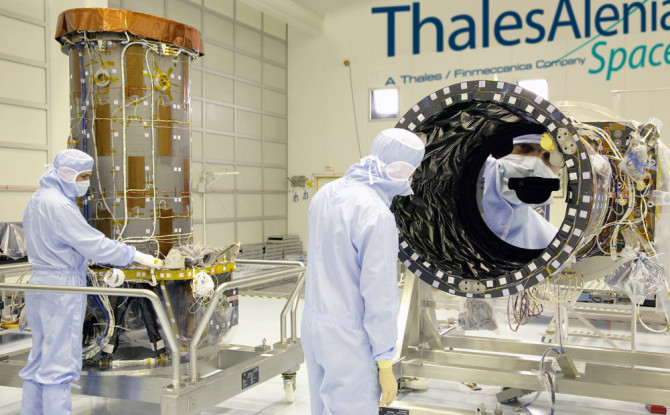

INDUSTRIAL MACHINES

Design of several automatic machines for satellites
(EMIS, CUPOLA,..)
