CTA – LST (Cherenkov Telescope Array – Large)

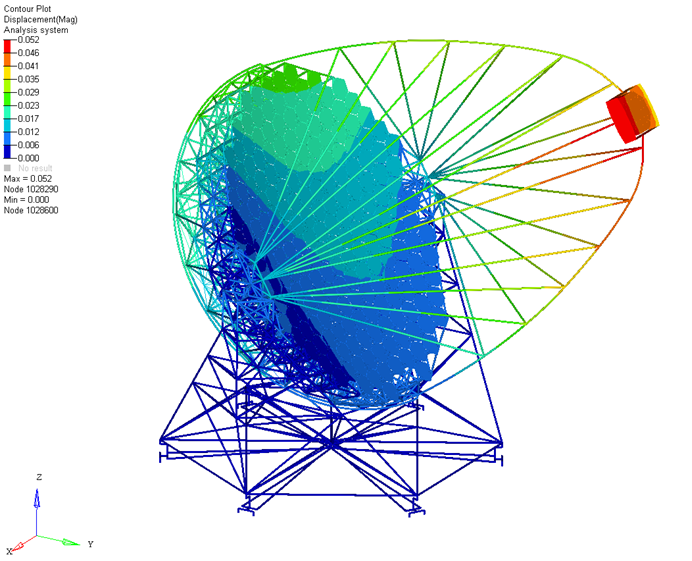

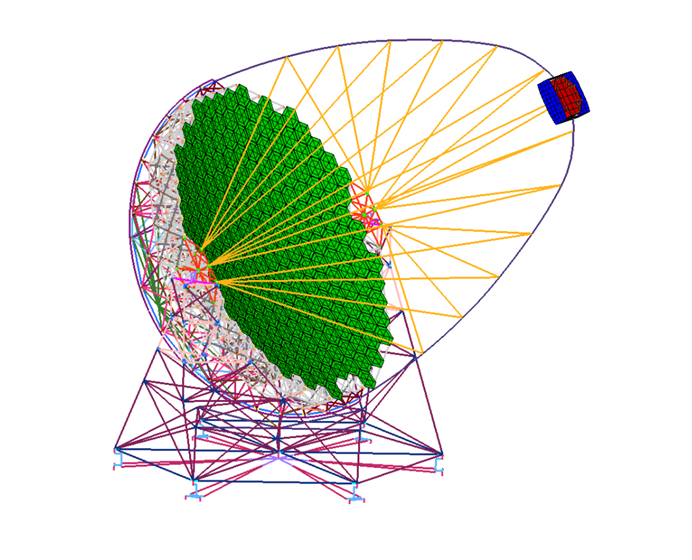

AirWorks performed the Stress Analysis of the whole structure. Both Static and Dynamic analyses (Seismic/SRSS and random) were performed, taking into account earthquake, thermal and wind loads.

Wind PSD for dynamic (random) analysis was extrapolated via dedicated algorythms.

An ad-hoc software was developed to correctly take into account all the loads acting on the beam elements, i.e., without neglecting transverse shear.

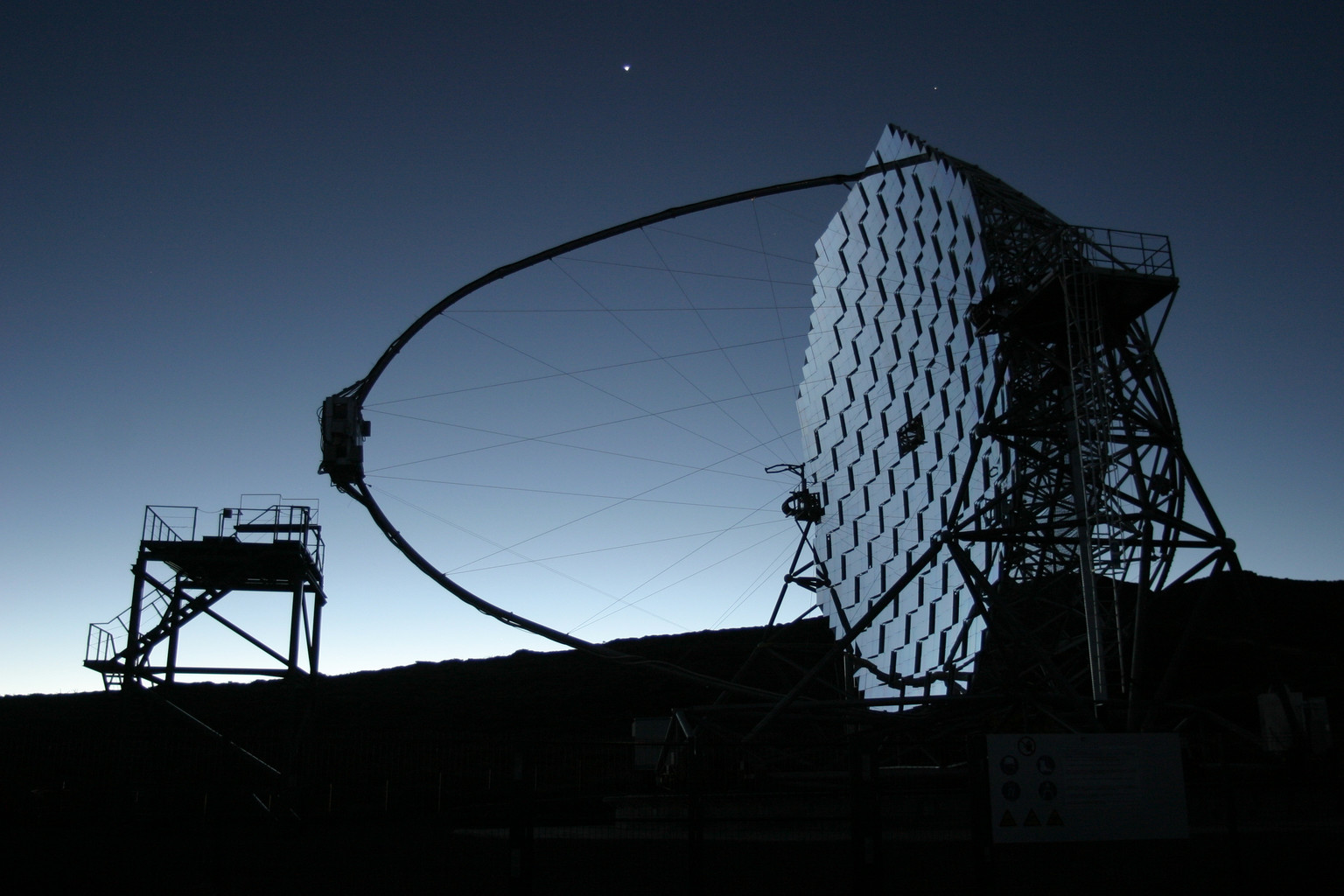

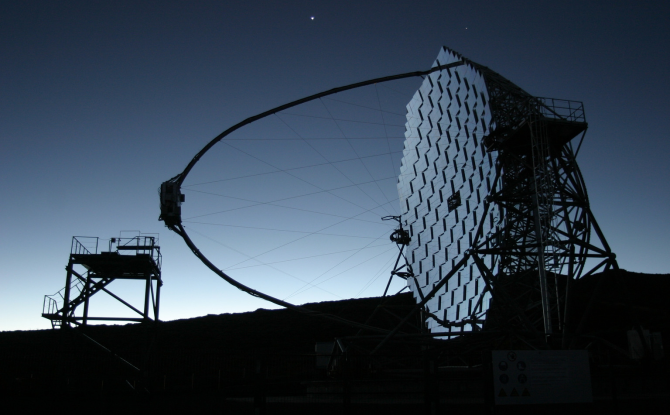

Please note that displayed image is courtesy of, and copyrighted by, Robert Wagner, Stockholm University
